PARD

PARD TS31-35 W/WO LRF THERMAL RIFLE SCOPE

£1,669.00

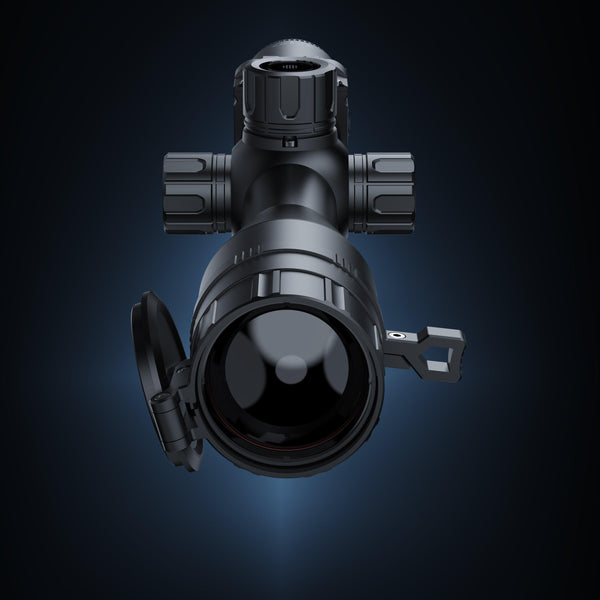

PARD TS31-35 W/WO LRF THERMAL RIFLE SCOPE

The Pard TS31 Thermal Rifle Scope, with optional LRF and Ballistic Calculator, comes with 100mm long eye-relief for ensured viewing comfort, a wide field of view and rubber eyepieces to ensure concealed observation at night; keeping the users habit of using traditional daytime optics. The TS31 also comes with an ultra-clear display with picture-in-picture function that provides a clear heat signature.



Key Features:

  • Optional LRF and Ballistic Calculator
  • Ultra clear display
  • 100mm eye-relief
  • Highly sensitive 12µm LWIR sensor
  • Integrated ballistic calculator
  • Infrared image enhancement algorithm
  • Self activated recording
  • Wi-Fi enabled
  • IP67 waterproof
  • 6 different reticle styles



With a wide field of view, the Pard TS31 offers a great sense of where the target is in relation to its environment. The highly sensitive 12μm vanadium oxide (VOx) sensor, NETD 35mK and 12µm pixel pitch allows users to enjoy rich contrast and bold resolution when acquiring targets. The integrated ballistic calculator can calculate bullet trajectory parameters such as velocity, bullet weight and zero range. Improving your accuracy by calculating precise aiming points for your next shot placement.

The TS31 uses proprietary software and next-level image enhancement algorithm to deliver high infrared spectrum sensitivity values to improve image visibility. The IREA improves the overall image by reducing image distortion, and enrich the amount of detail even of distant targets. This unit also features self-activated recording - when the device detects recoil, the whole shooting process will be recorded in 20 seconds interval. You can effortlessly record that perfect hunting moment.



Features & Specifications:

Model

TS31/TS31-LRF

Sensor



Type

Uncooled VOx(vanadium oxide)

Resolution(px)

384*288

Pixel size(µm)

12*12

NETD(mK)

≤35mK(0.035℃)

Frame rate(Hz)

50

Human detection distance(m)

800/1100/1400/1700

Vehicle detection distance(m)

1800/2200/2600/3000

Optics



Objective Lens(mm)

19/25/35/45

Optical Magnification(x)

1.7/2.2/3/4

Digital Zoom(x)

02/04/2006

Field of view (HxV)

Horizontal

10.4°/7.9°/5.6°/4.4°

Vertical

10.4°/7.9°/5.6°/4.4°

Diagonal

14.7°/11.2°/8°/6.3°

Eye Relief(mm)

100

Diopter Adjustment(D)

-3D~+5D

Display



Type

IPS LCD

Resolution(px)

800*800

Reticle Style

6

Reticle Color

4(Red/White/Yellow/Green)

Scene Mode

City/Rain/Forest

Image mode

WhiteHot/BlackHot/RedHot/Fusion1/Fusion2/IronRed1/IronRed2

Photo / Video



Photo Resolution(px)

1536*1536

Photo Format

.JPG

Video Resolution(px)

768*768

Video Format

.mp4

Storage(GB)

TF card(128 )(Max)

Image Engine

Pard IREA

Main function



LRF detection range(m)

1000

Ballistic Calculator

Yes

PIP

Yes

Hot Track

NO

Gyroscope

Yes

Self-motivated recording

Yes

Loop Recording

Yes

E-compass

Yes

Shutter

Mechanical Shutter

Microphone

Yes

Firmware Upgrade

Yes

Interfaces



USB Tpye-C

Yes

HDMI Output

Yes

Connections



WiFi

Yes

Supported Apps

PardVision

Power Supply



Battery Type

Lithium Ion 18650*1

Output Voltage(V)

3.7

Operating Time(h)

≤6

External power supply(V)

Type-C

Environmental characteristic



Degree of protection

IP67

Operating Temp(°C)

-20℃~50℃

Recoil Resistance(J)

6000

Material



Housing

Aluminium Alloy

Objective Lens

All-glass multi-coated lens

Measurement



Product Dimension(L x W x H, mm)

350*88*95(W/O Long Eyepiece)

410*88*95(W/ Long Eyepiece)

N.W/pcs(with/without battery, g)

680(W/O Battery);725(W/ Battery)
