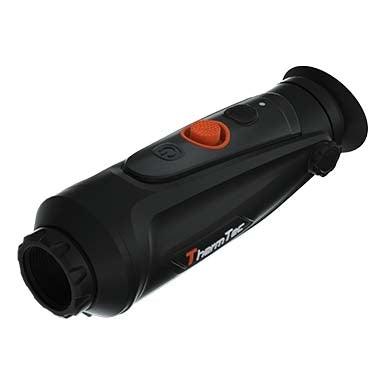

ThermTec Cyclops CP635 Thermal Imaging (640x512) Monocular (12um/35mk)


ThermTec Cyclops CP635 Thermal Imaging (640x512) Monocular (12um/35mk)

  • Two Image Modes: Designed with both WDR mode and target mode, it captures details clearly under different scenarios as needed. WDR Mode is suitable for high-contrast lighting conditions, while Target Mode helps you to focus more on your targets.
  • Built-in AI Rangefinder: Based on deep learning algorithm, the object distance can be automatically measured.
  • Electronic Image Stabilization: It provides clear and precise images even in scenes with lots of motion.
  • Wide Options of Color Palettes: 6 thermal image pallets with comfortable visual experience, to meet with a variety of environments and weather conditions.
  • Photo/Video Recorder: Integrated pictures and video recording makes sharing the thermal action quick and easy, with the functions of playback and APP sharing.
  • GPS Function: Enable users to know their coordinates in real time, which makes field activities safer.
  • Light and Handy: The compact dimension makes it a lightweight and handy companion wherever you go.

Features & Specifications:

  • Detector Type: Vox Microbolometer
  • Resolution: 640x512
  • Pixel Spacing: 12µm
  • NETD: ≤35mk@300k
  • Frame Rate: 50Hz
  • Spectral Range: 814µm
  • Lens (Manual Focus): 35mm (F/1.0)
  • FOV: 12.5° x 10°
  • Magnification: 2.0x
  • Digital Zoom: 1 - 6X continuous zoom
  • Color Palette: 5+
  • Noise Reduction: 3D noise reduction
  • Image Enhancement: IDE; HDR
  • OLED: 0.39 inch; 1024×768 resolution
  • Diopter Control: -5 ~ +5
  • Eye Distance: 40mm
  • OLED: 8 modes
  • Language: English
  • Reticle: 6+, adjustable coordinates
  • Memory Card: 16G
  • AI Distance Measurement: Yes
  • Photo, Record, Playback: Yes
  • Heat Track: Yes
  • Laser Indicator: No
  • GPS: Yes
  • Battery Type Internal Cell: (18650 Li battery x 2)
  • Battery Life Continuous working time: ≥ 12h
  • Type-C: Power charge; read data; output analog video
  • WI-FI: Two-way Wi-Fi connection; APP remote control
  • Working Temperature: -20°C~ +55°C
  • Protection Level: IP67; 1 meter drop resistance
  • Weight: 550g (with battery)
  • Size: 67mm×63mm×190mm
  • External Cable: Analog video cable; USB data cable
  • Other Accessory: Wrist strap; plush bag; user manual
